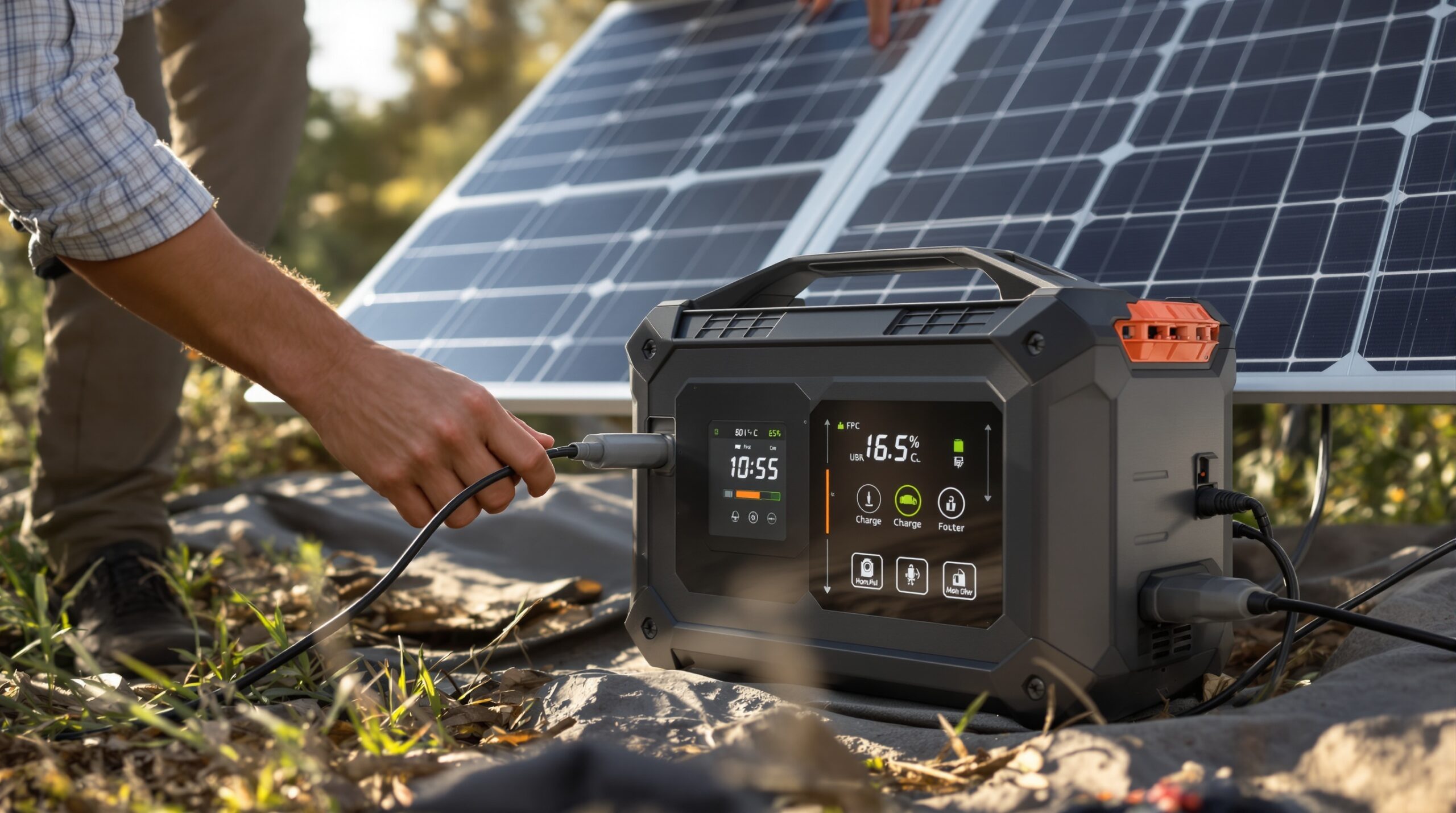

A compact LiFePO4 solar generator can power weekend trips without noise or fumes. You can build a modular system that packs easily, charges quickly, and runs common gear. Foldable panels and a smart BMS keep everything safe and efficient. With good planning, your setup will deliver reliable power every weekend.
Define Your Weekend Power Goals
Start by estimating your typical weekend loads. List devices, power draw, and expected run times. This planning step sets battery size, inverter capacity, and panel wattage. It also prevents underbuilding or overspending on oversized parts.
Consider phones, headlamps, a laptop, cameras, routers, and LED lighting. Add a 12‑volt compressor cooler if needed. A realistic daily budget might reach 400 to 800 watt‑hours. Your final number guides every component choice.
Here is a sample budget for two people. Two phones use 20 watt‑hours daily. A laptop uses 90 watt‑hours per charge. LED lights at 5 watts for six hours use 30 watt‑hours. A compact 12‑volt fridge averages 25 watts, using 250 watt‑hours. Your total reaches about 390 watt‑hours without the fridge, or 640 watt‑hours with it. These numbers help size storage and solar input.
Choose a Safe LiFePO4 Battery Module
LiFePO4 chemistry offers stable performance, long cycle life, and high usable capacity. A 12.8‑volt 4S pack matches common portable inverters and DC gear. Select a reputable 50 to 100 amp‑hour module for weekends. A 100 amp‑hour pack gives comfortable headroom for cloudy days.
Prioritize a smart BMS with protective and monitoring features. Seek low‑temperature charge cutoff, overcurrent protection, and short‑circuit protection. Demand accurate cell balancing and adjustable voltage thresholds. Bluetooth connectivity and a good app simplify setup and diagnostics.
Set conservative charge and discharge limits for longevity. Target a charge voltage between 14.2 and 14.4 volts. Avoid floating at 13.6 volts unless the manufacturer recommends it. Never charge below 0°C; enable the BMS low‑temperature cutoff.
Suggested Battery Specifications
Pick a 12.8‑volt 100 amp‑hour LiFePO4 battery with a 100 amp smart BMS. Usable energy averages around 1,150 watt‑hours per cycle. Typical continuous discharge sits at 100 amps; peak surge tolerates 200 amps for seconds. Operating temperatures range from ‑20°C to 60°C for discharge, and 0°C to 45°C for charge.
Choose units with certified cells and secure busbar construction. Check for UL‑listed or IEC‑tested components where possible. Confirm the BMS supports Bluetooth telemetry. This capability speeds troubleshooting on trips.
Plan Solar Input With Foldable Panels
Foldable panels pack small, deploy fast, and store easily between trips. Choose 200 to 300 watts for weekend reliability. Pair the array with an MPPT controller matched to your battery. MPPT improves harvest during partial shade and cooler mornings.
Use two 100‑watt foldable panels in series for higher MPPT efficiency. Many panels offer around 18 volts Vmp each. Series wiring produces roughly 36 volts Vmp, which suits a 12‑volt MPPT perfectly. Use MC4 connectors and 10 AWG solar cable.
Estimate energy based on local peak sun hours. Four sun hours produce roughly 600 watt‑hours from 200 watts after losses. Five sun hours approach 750 watt‑hours. These numbers cover phones, lights, and a small fridge daily.
Select a Quality MPPT Charge Controller
Match controller current to array output and battery voltage. A 20 to 30 amp MPPT suits 200 to 300 watts. Ensure the input voltage rating exceeds your series array Voc in cold weather. Verify programmable absorption and float settings for LiFePO4 chemistry.
Set absorption voltage between 14.2 and 14.4 volts. Limit absorption time to 15 to 30 minutes for weekend use. Disable float or set float near 13.4 volts. These settings reduce cell stress and prolong lifespan.
Choose the Inverter and DC Outputs
Size the inverter for your largest continuous AC load. Portable setups often run well on 300 to 600 watts. Always use a pure sine wave inverter for electronics and compressor fridges. Confirm surge capacity for startup loads.
Do not overbuild the inverter, which wastes idle power. Many compact inverters idle at 6 to 15 watts. Consider a remote switch to eliminate standby losses. This habit preserves battery capacity during short trips.
Add efficient DC outputs for common devices. Install a regulated USB‑C PD module up to 100 watts. Include fused 12‑volt sockets and a 12‑volt blade fuse panel. Regulated DC reduces inverter use and boosts overall efficiency.
Wiring, Protection, and Layout
Plan short, thick DC runs to minimize voltage drop and heat. Use 4 AWG wire for a 600‑watt inverter. Use 8 AWG between battery and MPPT for 30 amps. Keep solar leads 10 AWG with UV‑resistant insulation.
Fuse every source and branch. Install an MRBF or MEGA fuse directly on the positive battery post. Size the inverter fuse for its maximum current draw. Add a separate fuse for the MPPT output and DC distribution panel.
Use sealed bus bars rated above expected current. Include a battery negative bus and a chassis bonding point. Bond the inverter chassis to the case ground point. This step reduces fault risks and noise.
Enclosure, Cooling, and Modularity
Choose a rugged case with space for airflow and service. Pelican‑style cases handle moisture and transport well. Secure the battery with brackets or foam blocks. Mount electronics on a removable aluminum backplate.
Vent the inverter area and provide fan cutouts if needed. Keep the MPPT and BMS within temperature limits. Use grommets and cable glands for strain relief. Label ports on the exterior panel for clarity.
Design modules that disconnect quickly. Use Anderson SB50 or SB120 for battery and inverter couplings. Fit XT60 or XT90 for DC accessories. Keep MC4 connectors for solar inputs.
Step‑By‑Step Assembly
- Lay out the case, backplate, and component positions.
- Mount the MPPT, inverter, fuse blocks, and bus bars on the backplate.
- Install the battery securely with padding and restraint hardware.
- Crimp lugs with a hex die and apply heat‑shrink tubing.
- Wire the negative side first to the shunt, then to the bus bar.
- Wire the positive side through the main fuse to the bus bar.
- Connect the MPPT to the battery, then connect the solar input.
- Connect the inverter with the correct fuse and short cables.
- Add the USB‑C PD module and 12‑volt sockets on a fused panel.
- Verify polarity on every connection before closing the case.
Configure the Smart BMS and Monitoring
Open the BMS app and pair via Bluetooth. Set cell overvoltage to the manufacturer specification. Configure charge low‑temperature cutoff to 0°C. Enable balancing near the top of charge.
Calibrate state of charge using a full charge and a measured discharge. Avoid 0% routinely. Set discharge cutoff near 10.8 to 11.2 volts under load. These values protect cells during heavy draws.
Add a shunt monitor for precise energy data. Products like SmartShunt log current, voltage, and consumed amp‑hours. Pair the shunt with your phone for alerts. This data helps optimize panel placement and usage.
Charging and Everyday Use Tips
Top up the battery before leaving home. A 20‑amp LiFePO4 charger at 14.4 volts works well. Stop charging once absorption completes. This approach minimizes idle float time.
Deploy panels quickly on arrival to capture early sun. Tilt panels toward the sun for maximum harvest. Clean dusty panels to regain lost watts. Avoid shading from trees or roof racks.
Manage loads during cloudy periods. Prefer DC charging over AC inverters when possible. Cycle the fridge to conserve energy if needed. Monitor the shunt to track remaining capacity.
Safety, Compliance, and Maintenance
Secure all wiring against abrasion and movement. Keep a fire extinguisher nearby during first tests. Never bypass fuses or protective devices. Isolate the battery before servicing any component.
Do not charge below freezing temperatures. Warm the battery with cabin heat or a heating pad first. Store the battery at 40% to 60% state of charge. Recharge every few months during off‑season storage.
Use certified components where possible. Many reputable batteries include UN38.3 transport certification. Follow local regulations for portable generators and camping areas. Responsible design improves safety and reliability.
Cost Estimates and Upgrade Paths
Expect a practical build to cost between 700 and 1,300 dollars. A 100 amp‑hour LiFePO4 battery ranges from 250 to 450 dollars. Two 100‑watt foldable panels cost 200 to 400 dollars total. An MPPT controller costs around 100 to 200 dollars.
Budget 100 to 180 dollars for a pure sine inverter. Cases, wiring, and fusing often total 150 to 250 dollars. A shunt monitor adds 100 to 150 dollars. USB‑C PD modules and sockets add another 40 to 80 dollars.
Plan upgrades as needs grow. Add a second battery module in parallel with matched age and type. Expand panels to 300 watts and upgrade the MPPT accordingly. Consider a 24‑volt system for higher inverter efficiency later.
Final Checks and Field Testing
Verify torque on lugs and inspect insulation. Run a controlled discharge test with known loads. Confirm BMS cutoffs operate as configured. Log performance on the shunt over a full weekend.
Refine panel placement and cable management after the first trip. Adjust MPPT absorption time based on charge completion patterns. Tune inverter standby behavior for best efficiency. Small changes often yield large gains.
This compact, modular generator will support comfortable weekends off‑grid. Foldable panels keep recharging simple and portable. A smart BMS protects the battery and your investment. Thoughtful design ensures reliable power wherever you camp.
