Researchers have crossed a critical threshold for solar conversion efficiency. A perovskite‑silicon tandem solar cell has surpassed 33% in independent testing. Accredited laboratories validated the result under standard test conditions. The achievement confirms years of rapid progress in tandem architectures. It also signals a new performance era for photovoltaic technology.
This milestone matters far beyond a single record. It demonstrates that tandem designs can outpace silicon’s theoretical limits. It also confirms that lab advances translate into audited, repeatable performance. The result narrows the gap between cutting‑edge cells and commercial products. Momentum is building, and the implications are profound.
Why This Milestone Matters
Silicon solar cells dominate today’s market. Leading silicon lab cells approach 27% efficiency. That value sits near silicon’s practical ceiling for single junctions. Tandems stack materials to harvest more sunlight efficiently. Surpassing 33% demonstrates a clear advantage over silicon alone.
Higher cell efficiency increases energy yield per area. It also lowers balance‑of‑system costs for many installations. Developers can use less land and fewer racking materials. Installers can reduce cabling, labor, and permitting burdens. These compounding gains improve system economics significantly.
The milestone also validates intensive materials research. Perovskites deliver strong absorption and tunable bandgaps. Silicon contributes to industrial maturity and long‑term reliability. Together, they offer a compelling technology pathway. The combination now shows certified, world‑class performance.
How Tandem Architecture Boosts Performance
Tandems stack two photovoltaic absorbers with complementary bandgaps. The perovskite top cell absorbs high‑energy visible photons. The silicon bottom cell captures lower‑energy near‑infrared light. This spectral splitting reduces thermalization losses and voltage penalties. More photons convert to electricity with less wasted energy.
The architecture enhances open‑circuit voltage and current utilization. Engineers tune the perovskite bandgap to optimize current matching. Optical coatings and textured surfaces improve light management. Recombination layers connect the subcells with minimal electrical loss. These improvements push efficiency beyond the limits of single-junction cells.
Independent Lab Validation and Measurement Protocols

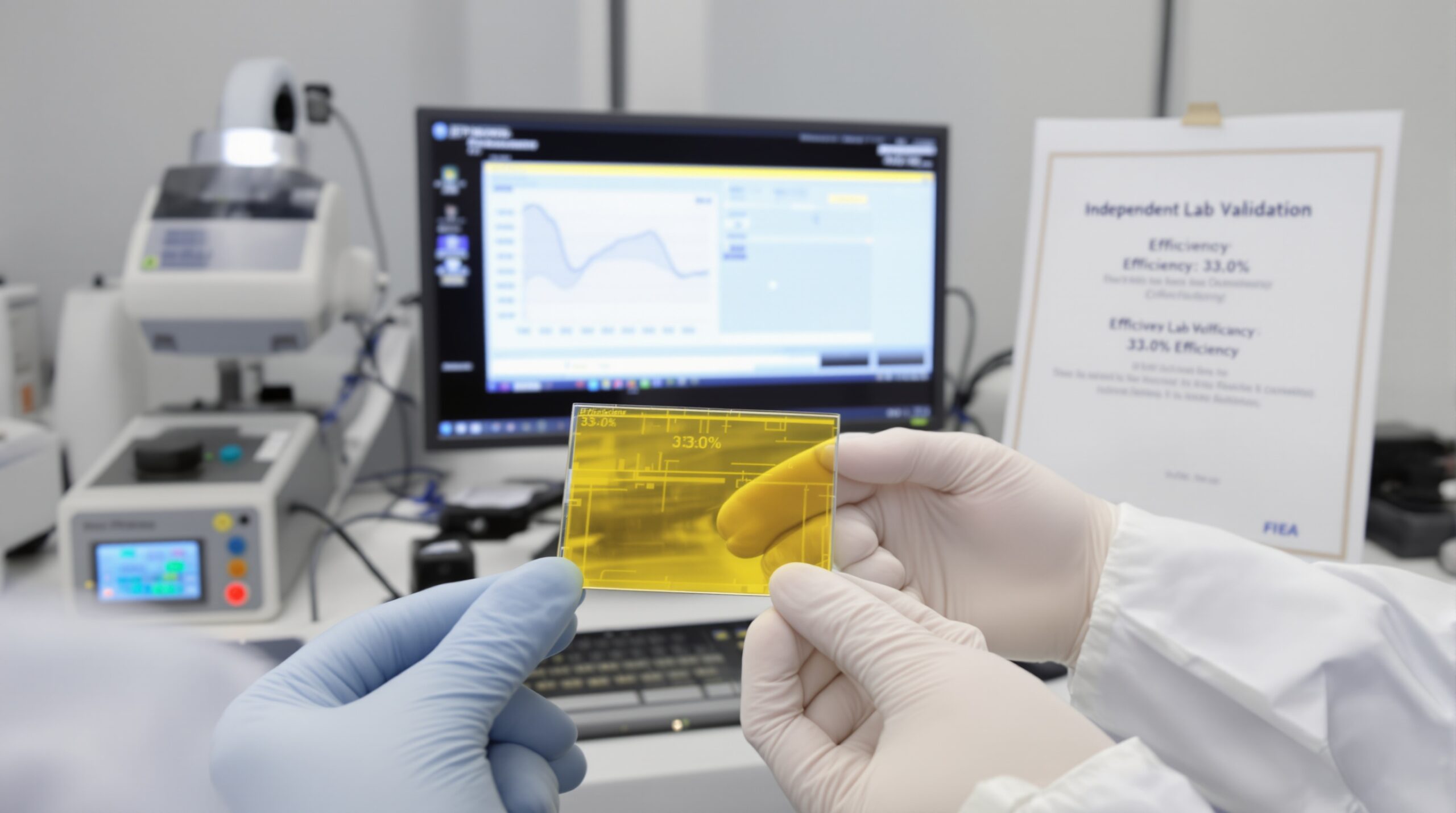

Independent laboratories certify photovoltaic performance under rigorous protocols. Accredited labs include Fraunhofer ISE CalLab and NREL. Technicians use calibrated solar simulators under AM1.5G spectrum conditions. They test at 1000 watts per square meter and 25 degrees Celsius. They precisely correct for spectral mismatch and device area.
Labs confirm efficiency through current‑voltage sweeps and stabilized power tracking. They often record maximum power under steady‑state operation. External quantum efficiency measurements cross‑validate current output. Combined methods reduce uncertainty and bias. The reported value reflects reproducible device performance.
What Counts as Independent Validation
Independent validation involves third‑party measurement without developer influence. The lab verifies sample preparation and device aperture. It applies standardized procedures and calibrated instrumentation. The final report documents uncertainty, methods, and reference devices.
Device Design Choices That Enabled the Leap
Reaching beyond 33% required careful materials engineering. Researchers employed a wide‑bandgap perovskite for the top cell. That bandgap supports higher voltage and better current matching. The silicon bottom cell used a high‑quality passivated contact architecture. This pairing minimized nonradiative recombination losses.
Optical management played a central role. Anti‑reflective coatings reduced front‑surface losses significantly. Textured silicon enhanced light trapping across wavelengths. Transparent conductive layers balanced optical and electrical performance. Together, these adjustments boosted photocurrent and fill factor.
Interfaces and Recombination Layers
Interfaces often dominate tandem losses. Engineers optimized interlayers to reduce parasitic absorption. They also tuned contact work functions for efficient carrier extraction. The recombination layer enabled low‑resistance current flow between subcells.
Stability Improvements and Durability Verification
Perovskite stability remains a crucial focus. Recent formulations improve resistance to moisture, heat, and light. Robust encapsulation further protects sensitive layers from exposure. Ion migration has been reduced with improved compositions. These measures support longer operating lifetimes.
Validation extends beyond efficiency measurements. Labs and developers conduct accelerated stress tests. Protocols include damp heat, thermal cycling, and UV exposure. Devices undergo maximum power tracking under continuous illumination. Results increasingly align with industry durability expectations.
Field trials provide additional confidence. Pilot arrays monitor seasonal performance and degradation. Data inform encapsulation and module design refinements. They also guide inverter and system integration choices. Continuous feedback accelerates technology maturation.
Implications for Cost and Energy Yield
Higher efficiency directly increases annual energy yield. For fixed area systems, this improvement lowers levelized electricity costs. Rooftops benefit from greater output without structural changes. Utility‑scale plants can reduce land and interconnection needs. Financial models reflect improved project returns.
Manufacturers can also realize cost synergies. Tandems leverage existing silicon factories and supply chains. Additional perovskite steps add materials and deposition costs. However, efficiency gains offset many expenses across the system. Overall, economics remain favorable as processes scale.
Bankability requires consistent performance and warranties. Certified efficiencies support stronger product value propositions. Insurers and lenders evaluate degradation rates carefully. Demonstrated stability will influence warranty terms and financing costs. Every validation milestone improves investor confidence.
Manufacturing Pathways and Scale‑Up Considerations
Several manufacturing routes are under development. Vapor deposition and solution processing both show promise. Researchers work to uniformize coatings over large areas. Inline metrology tracks thickness, phase, and defect density. Yield improvements drive cost reductions during ramp‑up.
Integration with silicon lines remains strategic. Tandem layers can be deposited onto finished silicon cells. Alternatively, perovskite layers can integrate earlier in the flow. Each pathway balances capital needs and throughput. Production choices will vary by manufacturer and region.
Inline Quality Control and Yield
High yield requires robust process control. Optical inspection detects pinholes and nonuniformity. Electrical tests map shunts and series resistance. Data analytics enable rapid root cause identification.
Comparison With Conventional Technologies
Conventional silicon modules dominate shipments today. Their efficiencies continue improving steadily. However, single‑junction silicon faces inherent thermodynamic limits. Tandems push beyond those limits with spectral splitting. The new record quantifies that advantage clearly.
Other high‑efficiency technologies also compete. III‑V tandems deliver very high performance at high cost. Perovskite‑silicon tandems target mainstream costs and high volume. They promise strong performance with scalable manufacturing. That combination differentiates the approach strategically.
Remaining Challenges and Research Priorities
Scaling from small cells to full modules remains challenging. Large‑area uniformity must meet tight tolerances. Interconnection must avoid damaging sensitive layers. Module encapsulation must manage moisture and heat effectively. Production must maintain performance across many batches.
Materials stability still demands continued work. Researchers optimize perovskite compositions for reduced ion migration. They refine contact stacks to curb chemical reactions. They also improve barrier films against oxygen and water. Each improvement extends operational lifetime expectations.
Reliability standards continue evolving. New test sequences address tandem‑specific failure modes. Data sharing supports pre‑competitive learning across the sector. Consortia coordinate best practices for measurement and durability. These efforts accelerate responsible commercialization.
Roadmap to Bankability and Commercialization
Bankability depends on repeatable performance at scale. Manufacturers must demonstrate consistent production yields. Third‑party labs must certify modules, not just cells. Field data must validate modeled degradation. Insurance frameworks must price risk appropriately.
Early markets can support initial volumes. Premium rooftop systems value efficiency highly. Space‑constrained sites can justify early adoption. Performance guarantees will ease customer decisions. As costs fall, mainstream markets will follow.
Policy measures can accelerate deployment. Clear standards reduce certification ambiguity. Investment incentives de‑risk factory buildouts and tooling. Workforce training develops specialized manufacturing skills. Strategic support strengthens domestic supply chains.
Environmental and Supply Chain Considerations
Sustainability aspects require careful management. Perovskite inks can contain lead in small quantities. Robust encapsulation minimizes environmental exposure risk. Recycling strategies can recover lead safely at the end of life. Research continues into lead‑free alternatives, too.
Material intensity appears favorable at high efficiency. Higher output per area reduces glass and aluminum use. Lower system footprints decrease site disturbance. Improved energy yield enhances life‑cycle carbon performance. These factors support strong environmental profiles.
Supply chains will evolve with scaling. Secure access to specialty chemicals is vital. Equipment vendors must deliver reliable coating tools. Quality standards must align across regions. Coordination will mitigate bottlenecks during ramp‑up.
What Surpassing 33% Means for Climate Goals
Higher efficiency accelerates solar deployment impacts. More clean electricity can fit on rooftops and brownfields. Grid planners can achieve targets with fewer interconnections. Storage and transmission investments benefit from higher capacity factors. Climate models improve with faster emissions reductions.
The milestone also energizes research communities. It validates public and private investments in tandem programs. It inspires new collaborations across academia and industry. It draws talent into advanced photovoltaics. Progress begets more progress quickly.
Surpassing 33% is not the endpoint. Experts see pathways toward 35% and beyond. Continued innovation can unlock further headroom. Field reliability will determine ultimate market success. The trajectory looks increasingly promising.
Independent validation provides the essential proof point. It confirms performance under transparent, audited conditions. The tandem concept now holds a firm lead. Industry can translate this advantage into products. Solar’s next chapter is arriving quickly.
