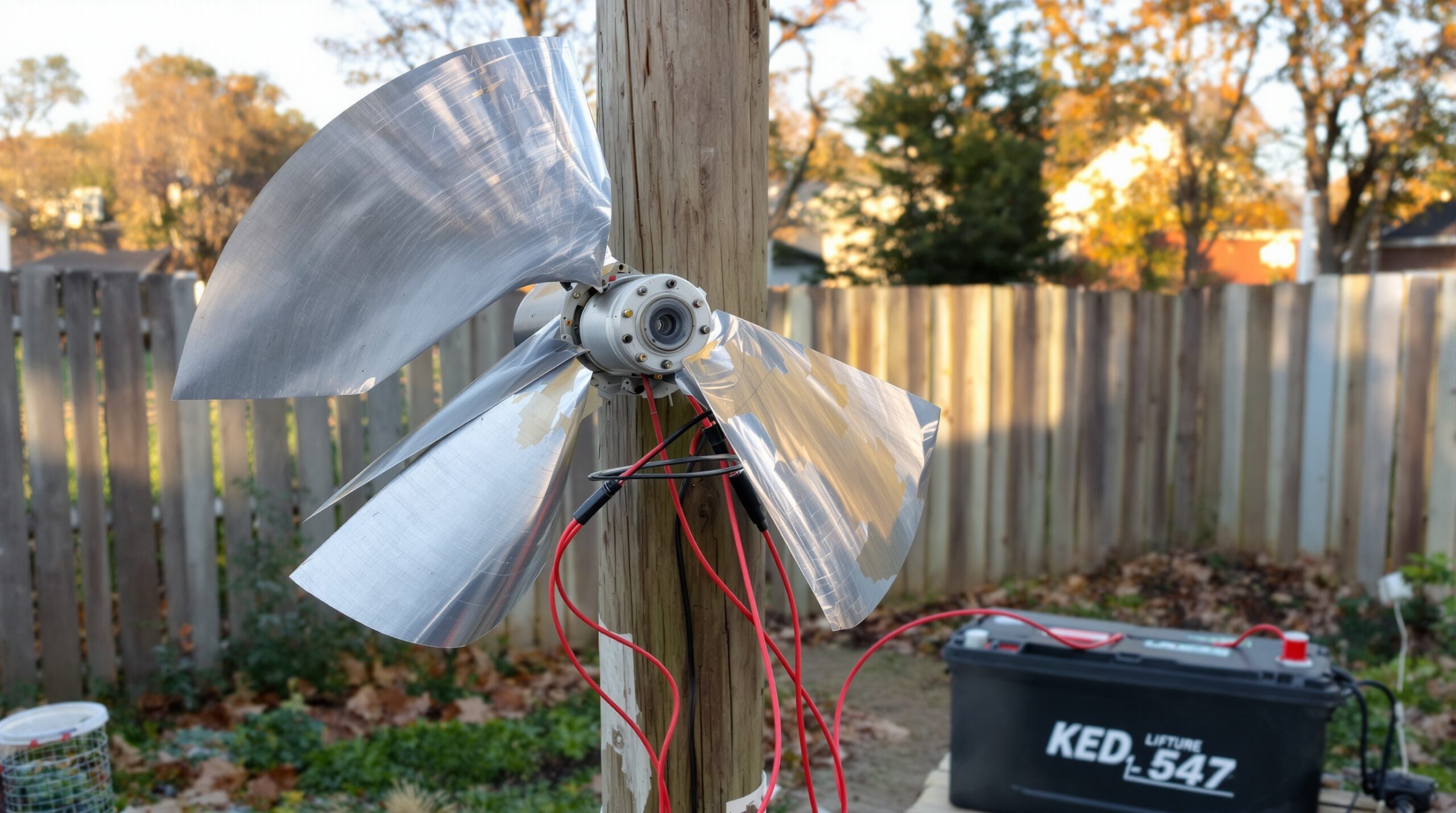

A discarded e-bike hub motor can become a useful wind generator. The conversion requires basic tools, patience, and careful planning. With a small rotor and smart electronics, it can trickle-charge a home battery. This project offers learning, resilience, and real utility on windy days. The guide below walks through concepts, parts, and practical steps.
How a Hub Motor Becomes a Generator
Most e-bike hub motors are three-phase permanent magnet machines. As a generator, they produce AC when the rotor spins. A direct-drive hub motor has magnets fixed to the shell and no internal gears. That design works best because it has no freewheel clutch. Geared hub motors often include a one-way clutch that prevents generation.
You can still use some geared hubs if you lock or remove the clutch. However, direct-drive units are simpler and sturdier. The generator produces a line-to-line voltage proportional to speed. Many direct-drive hubs show around 8 to 12 RPM per volt. That means 200 RPM yields roughly 16 to 25 volts AC line-to-line.
The voltage becomes DC through a three-phase bridge rectifier. After rectification, expect a small diode voltage drop. The drop typically measures about 1.2 to 2.0 volts under load. Understanding this relationship helps you match rotor size and battery voltage. With that foundation, you can choose a practical setup.
Selecting a Suitable Motor and Key Parts
Pick a direct-drive hub motor from a 26-inch e-bike wheel if possible. These typically produce usable voltage at modest RPM. Check that the axle spins smoothly and the wiring is intact. Avoid cracked magnets, burnt windings, or severe corrosion. Healthy bearings and undamaged phase wires save time and frustration.
Gather essential parts before building. You will need a three-phase 50A 100V bridge rectifier. Add a weatherproof enclosure and a heat sink for the rectifier. Use 12 AWG outdoor-rated cable for runs up the tower. Include fuses or DC breakers near the battery and nacelle.
You will also need a charge controller matched to your battery. For lead-acid, choose a wind diversion controller or buck converter. For LiFePO4, use a CC-CV charger or wind MPPT controller. Include a dump load resistor sized for peak turbine power. Add a manual brake switch that shorts the three phases.
Mechanical parts matter as much as electronics. Plan a 1.2 to 1.8 meter rotor diameter. Use carved wooden blades or well-shaped PVC blades. Prepare a hub adapter to attach blades to the motor flange. Build a yaw mount using pipe-in-pipe hardware with a thrust washer.
Finally, prepare a sturdy tower. A 3 to 6-meter mast clears ground turbulence. Guy it with steel cables anchored firmly. Ground the tower and add a lightning arrestor if possible. With parts collected, you can design for performance.
Rotor Sizing and Expected Output
Small wind turbines deliver modest power, but they run often. Power in wind scales with the cube of wind speed. Use the formula 0.5 × air density × swept area × velocity cubed. Air density near sea level is about 1.225 kilograms per cubic meter. Swept area equals pi times radius squared.
Consider a 1.5 meter diameter rotor with 1.77 square meters of area. At 6 meters per second, wind power is about 234 watts. Small alternators and blades capture 20 to 30 percent efficiency. Expect around 50 to 80 watts at that wind speed. That output suits trickle charging well.
Blade speed matters for voltage. Choose a tip speed ratio of around six for two or three blades. At 5 meters per second, rotor RPM will be moderate. A 1.5 meter rotor at TSR six spins near 380 RPM. That speed can yield a useful charging voltage after rectification.
Keep cut-in speed in mind. Cut-in is the wind speed where voltage exceeds the battery voltage. Lower cut-in means more hours of generation. Light blades and minimal friction improve low-wind performance. Thoughtful design maximizes energy capture over time.
Electrical Architecture and Protection
Wire the three motor phases to a six-diode bridge rectifier. Mount the rectifier on a heat sink inside a sealed box. Add a 4700 microfarad capacitor rated for 63 to 100 volts DC. The capacitor smooths the rectified output slightly. Place a TVS diode across the DC output for spikes.
Route the DC down the tower through abrasion-resistant cable. Install a DC breaker at the base for safe servicing. Use a diversion-style wind controller for lead-acid systems. It regulates battery voltage by dumping surplus energy. The dump load should be air-cooled and mounted safely.
For lithium iron phosphate, use a wind-rated MPPT controller. It adjusts load to hold optimal generator speed. Some systems require a boost or buck stage for matching. Ensure the battery’s BMS can handle regenerative charging. Always include fuses close to the battery terminals.
Integrate a manual shorting brake across the three phases. A three-pole switch can short the phases together. This produces strong electromagnetic braking during storms. Never engage the brake at very high RPMs. Feather the turbine first or wait for lower wind.
Mechanical Build Steps
Start by stripping the hub motor from its rim. Remove spokes carefully to avoid damaging threads. Clean the stator and rotor, then inspect the seals. Replace bearings if rumbling or gritty. Re-grease seals to resist rain and dust.
Attach a blade hub to the motor’s disk brake mount. Many hubs use a six-bolt ISO pattern. Fabricate a steel adapter plate if necessary. Balance the blade set before final mounting. Balanced blades reduce vibration and noise.
Build a yaw assembly using nested pipes. Weld or bolt a plate to hold the motor and tail. Add a simple tail vane for wind alignment. Ensure the tail area matches rotor size. A longer tail increases directional stability.
Mount the rectifier and capacitor in the nacelle box. Seal cable entries with grommets and silicone. Route a drip loop to keep water out. Add strain relief on all cables. Label all connections for future maintenance.
Raise the tower with help and use guy lines. Tension guys evenly and stake them deeply. Verify free yaw without cable twisting. Consider a slip ring for continuous yaw freedom. Otherwise, set yaw stops to prevent cable winding.
Commissioning and Tuning
Test the generator with a cordless drill on the axle. Measure open-circuit voltage versus RPM. Confirm rectifier and polarity before battery connection. Engage the controller and monitor charge current. Verify the dump load activates at set voltage.
Observe cut-in wind speed during the first breezy day. Adjust blade pitch or controller settings to optimize. Check temperatures of the rectifier and dump load. Warm is normal, but scorching indicates trouble. Tighten hardware after the first windy night.
Performance You Can Reasonably Expect
Small turbines rarely power entire homes. They excel at maintaining batteries during windy periods. Expect five to 120 watts depending on wind. Many sites average 10 to 50 watts across a day. That equals 240 to 1200 watt-hours in blustery weather.
As an example, 50 watts for six hours yields 300 watt-hours. A 12-volt battery gains about 25 amp-hours there. That offset supports routers, LED lights, or sensors. It also keeps backup batteries topped between solar cycles. Your site’s wind resource sets the real ceiling.
Safety and Compliance Notes
Spinning blades can injure, so maintain clearance. Install the turbine away from people, windows, and power lines. Add visible signage if near property lines. Wear eye protection and gloves during assembly. Secure all fasteners with thread locker.
Electricity demands respect. Fuse everything and follow polarity carefully. Use appropriately rated breakers and wiring. Keep batteries ventilated and protected from short circuits. Never connect this turbine directly to the grid.
Check local bylaws for small wind structures. Permits may apply for towers above certain heights. Respect neighbors regarding noise and aesthetics. Document your system for insurance purposes. Responsible installation builds community trust.
Upgrades, Variations, and Troubleshooting
Consider star-delta rewiring if accessible. Delta increases voltage at a given RPM in some motors. Many hubs are potted, limiting rewiring options. If rewiring is impossible, use a boost converter. The converter raises low DC voltage for charging.
Add MPPT control for better low-wind harvest. MPPT holds the alternator near optimal speed. Consider blade profiles with efficient airfoils. Sharper leading edges reduce stall at low speed. Balanced, stiff blades start earlier and run quieter.
If cut-in remains high, reduce cogging torque. Slightly skewed stator laminations help, when feasible. Low-friction bearings also minimize startup resistance. A lighter tail can reduce yaw friction. Keep cable loops smooth to avoid snagging.
Unusual vibrations often indicate imbalance. Rebalance blades and check adapter alignment. Overheating rectifiers need more heat sinking. Use larger aluminum plates and thermal paste. Seal enclosures better if condensation appears.
What This Project Delivers
This conversion turns scrap into dependable micro-generation. The turbine works quietly alongside solar on cloudy days. It trickle-charges a home battery with minimal oversight. Maintenance stays simple with occasional inspections. You gain practical resilience and engineering experience.
Begin with careful planning and realistic expectations. Build with safety, weather resistance, and serviceability in mind. Start small, then iterate as you learn. The wind will teach the rest. With patience, your hub-motor turbine will earn its keep.
